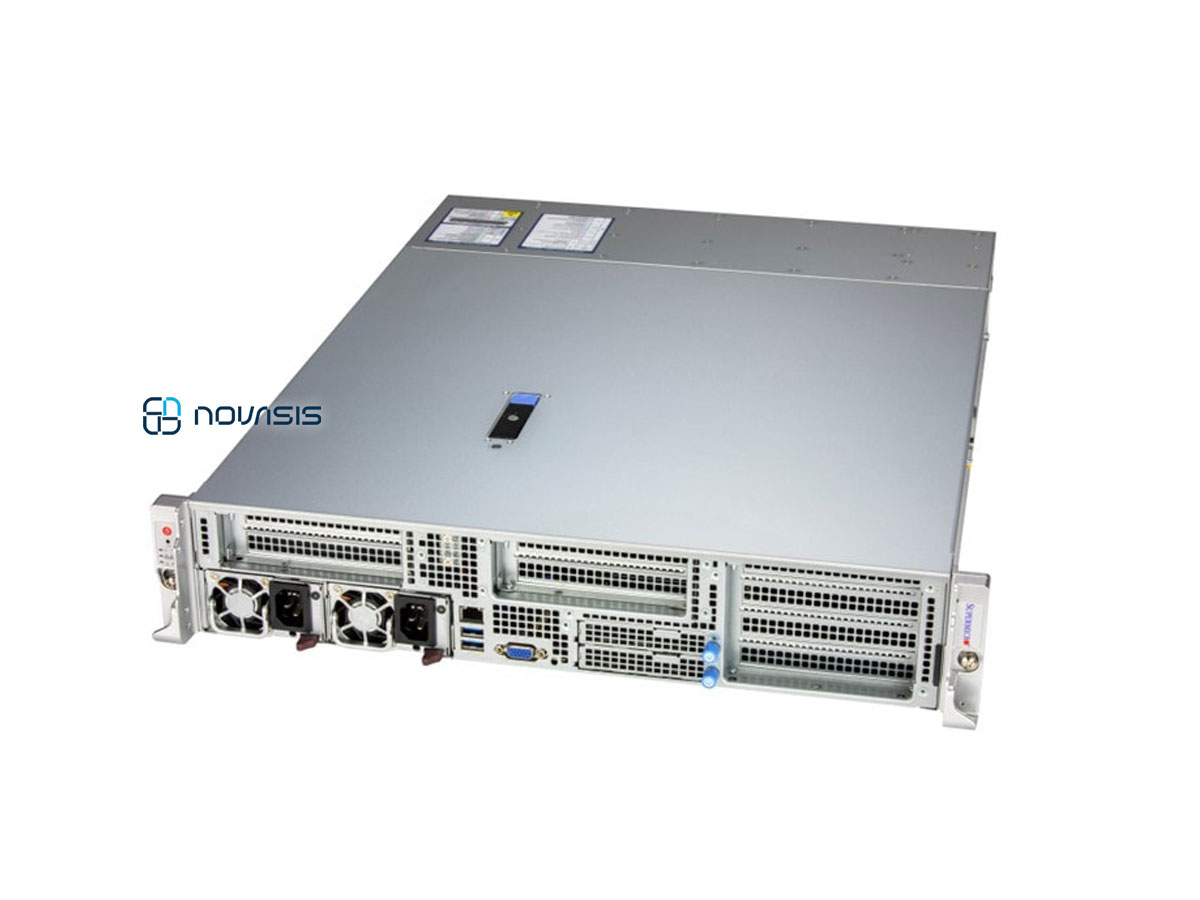

Supermicro SYS-222HE-FTN Server
Brand : Supermicro
SYS-222HE-FTN
- Dual Intel Xeon 6700/6500 Series processors
- Up to 288 total cores (E-core configuration)
- Up to 8TB DDR5 ECC memory
- Short-depth 2U rackmount design
- Up to 4 GPUs for AI inference
- PCIe Gen5 and CXL 2.0 support
- Front I/O architecture for edge deployments
- Optimized for 5G, edge computing, and virtualization
- Enterprise and telecom-ready platform
Related Products:
SYS-222HE-FTN for Edge Computing and 5G Infrastructure in the UAE
The Supermicro SYS-222HE-FTN is a high-performance 2U short-depth server designed for edge computing, AI inference, telecom infrastructure, and enterprise workloads. Featuring Intel Xeon 6700 and 6500 Series processors, flexible GPU support, and advanced PCIe Gen5 expansion, the platform delivers the performance required for distributed computing environments.
Designed for deployments across Dubai, Abu Dhabi, and the UAE, the SuperServer SYS-222HE-FTN is ideal for organizations building edge cloud platforms, 5G infrastructure, AI-powered services, and virtualized enterprise environments.
Key Features
Intel Xeon 6700/6500 Architecture
The IoT SuperServer SYS-222HE-FTN supports both Performance-core (P-core) and Efficient-core (E-core) processor configurations.
P-Core Benefits
- Up to 86 cores per CPU
- High single-thread performance
- Low-latency applications
- Enterprise databases
E-Core Benefits
- Up to 144 cores per CPU
- Maximum workload density
- Cloud-native applications
- Virtualized environments
This flexibility allows organizations to optimize infrastructure for specific workload requirements.
AI Inference and GPU Acceleration
Supports:
- Up to 3 double-width GPUs
- Up to 4 single-width GPUs
Ideal for:
- AI inference
- Computer vision
- Video analytics
- Edge AI deployments
- Machine learning services
High-Speed DDR5 Memory
The system supports:
- Up to 8TB DDR5 ECC memory
- DDR5 RDIMM up to 6400MT/s
- DDR5 MRDIMM up to 8800MT/s (P-core configurations)
This enables exceptional performance for memory-intensive applications and virtualization environments.
PCIe Gen5 and CXL 2.0 Expansion
The platform supports:
- PCIe Gen5 connectivity
- Up to 4 CXL 2.0 devices
- Advanced networking modules
- AI accelerator integration
CXL support helps future-proof infrastructure investments.
Short-Depth Edge-Optimized Design
Unlike traditional enterprise servers, the SYS-222HE-FTN features:
- Short-depth chassis
- Front I/O accessibility
- Edge deployment readiness
- Telecom rack compatibility
These features simplify installation in space-constrained environments.
Edge AI and 5G Performance Benefits
- Edge Computing Infrastructure: Deploy applications closer to users for lower latency and improved responsiveness.
- 5G Network Functions: Support virtualized network functions (VNFs) and cloud-native network functions (CNFs).
- AI Inference at the Edge: Run AI models locally to reduce data transfer requirements and improve response times.
- Enterprise Virtualization: Consolidate workloads while maintaining performance and operational efficiency.
- Multi-Access Edge Computing (MEC): Enable real-time services for smart cities, industrial automation, and connected environments.
Building Edge Infrastructure in Dubai or Abu Dhabi?
Novasis helps enterprises, telecom operators, and service providers design edge computing architectures optimized for AI, networking, and low-latency applications.
Storage and Expansion
Flexible Edge Storage Architecture
The SYS-222HE-FTN supports:
- Up to 10 hot-swap drive bays
- NVMe, SAS, and SATA compatibility
- High-speed M.2 NVMe storage
This flexibility supports diverse edge and enterprise workloads.
Advanced Expansion Capabilities
With PCIe Gen5 and CXL support, organizations can integrate:
- High-speed networking adapters
- AI accelerators
- Storage controllers
- Future infrastructure technologies
Networking and Connectivity for Telecom and Enterprise Deployments
The SYS-222HE-FTN server supports modern networking architectures through OCP 3.0 compatible AIOM modules. Ideal for:
- 5G infrastructure
- Telecom edge nodes
- Enterprise networking
- Distributed cloud environments
Networking Advantages
- Flexible network design
- Carrier-grade scalability
- High-speed connectivity
- Future-ready architecture
Security and Management
Enterprise Security Features
- TPM support
- Secure firmware architecture
- Dedicated BMC management
- Advanced system monitoring
Infrastructure Management Tools
Supported management solutions include:
- SuperCloud Composer
- Supermicro Server Manager
- Super Diagnostics Offline
- Supermicro Thin-Agent Service
- SuperServer Automation Assistant
These tools simplify deployment and operational management.
Ideal Use Cases for SYS-222HE-FTN Server
- Edge AI Infrastructure
- 5G Network Infrastructure
- Multi-Access Edge Computing (MEC)
- Enterprise Virtualization
- Cloud and Edge Platforms
- Industrial and Smart City Applications
Why Choose SuperServer SYS-222HE-FTN?
The SYS-222HE-FTN combines edge-ready design, powerful compute capabilities, and future-ready expansion technologies in a compact 2U platform.
Key advantages include:
- Intel Xeon 6700/6500 architecture
- Short-depth chassis
- Front I/O accessibility
- AI inference acceleration
- PCIe Gen5 and CXL 2.0 support
- Up to 8TB DDR5 memory
- Optimized for UAE edge and telecom deployments
Technical Specifications
| Component | Specification |
| Form Factor | 2U Short-Depth Rackmount |
| CPU | Dual Intel Xeon 6700/6500 Series |
| Maximum Cores | Up to 288 Total Cores |
| Memory | Up to 8TB DDR5 ECC |
| Storage Bays | Up to 10 Hot-Swap NVMe/SAS/SATA |
| GPU Support | Up to 3 Double-Width GPUs |
| Expansion | PCIe Gen5 + CXL 2.0 |
| Networking | Dual OCP 3.0 AIOM |
| Power | Dual 2000W Titanium |
| Management | Supermicro Enterprise Suite |
❓Frequently Asked Questions
What makes the SYS-222HE-FTN suitable for edge deployments?
Its short-depth chassis, front I/O design, flexible networking, and AI acceleration capabilities make it ideal for edge environments.
Is this server suitable for 5G infrastructure?
Yes. The platform is specifically designed to support telecom workloads, virtualized network functions, and edge computing applications.
Can it run AI inference workloads?
Yes. The server supports multiple GPUs and is optimized for AI inference, computer vision, and analytics applications.
What is the advantage of CXL support?
CXL enables future memory expansion and accelerator integration, helping organizations scale infrastructure efficiently.
Is this server suitable for UAE telecom operators?
Yes. The SYS-222HE-FTN is an excellent choice for telecom providers, enterprises, and edge infrastructure projects across Dubai, Abu Dhabi, and the UAE.
Deploy Edge and 5G Infrastructure in the UAE with Novasis
Whether you are building an edge AI platform, deploying 5G infrastructure, or modernizing enterprise computing environments, Novasis provides expert consultation and deployment services tailored to your business goals.
Additional information
| Form Factor | 2U Rackmount |
|---|---|
| Processor | Dual Socket E2 (LGA-4710) |
| GPU | Max GPU Count: Up to 3 double-width or 4 single-width GPUs |
| System Memory | Slot Count: 32 DIMM slots/16 Channels |
| Drive Bays Configuration | Default: Total 6 bays |
| Expansion Slots | PCI-Express (PCIe) Configuration: Option A |
| On-Board Devices | NVMe: NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required) |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port |
| System Cooling | Fans: Up to 6 counter-rotating 60x60x56mm Fan(s) |
| Power Supply | 2x 2000W Redundant (1+1) Titanium (certification pending) Level (96%) Hot-plug power supplies |
