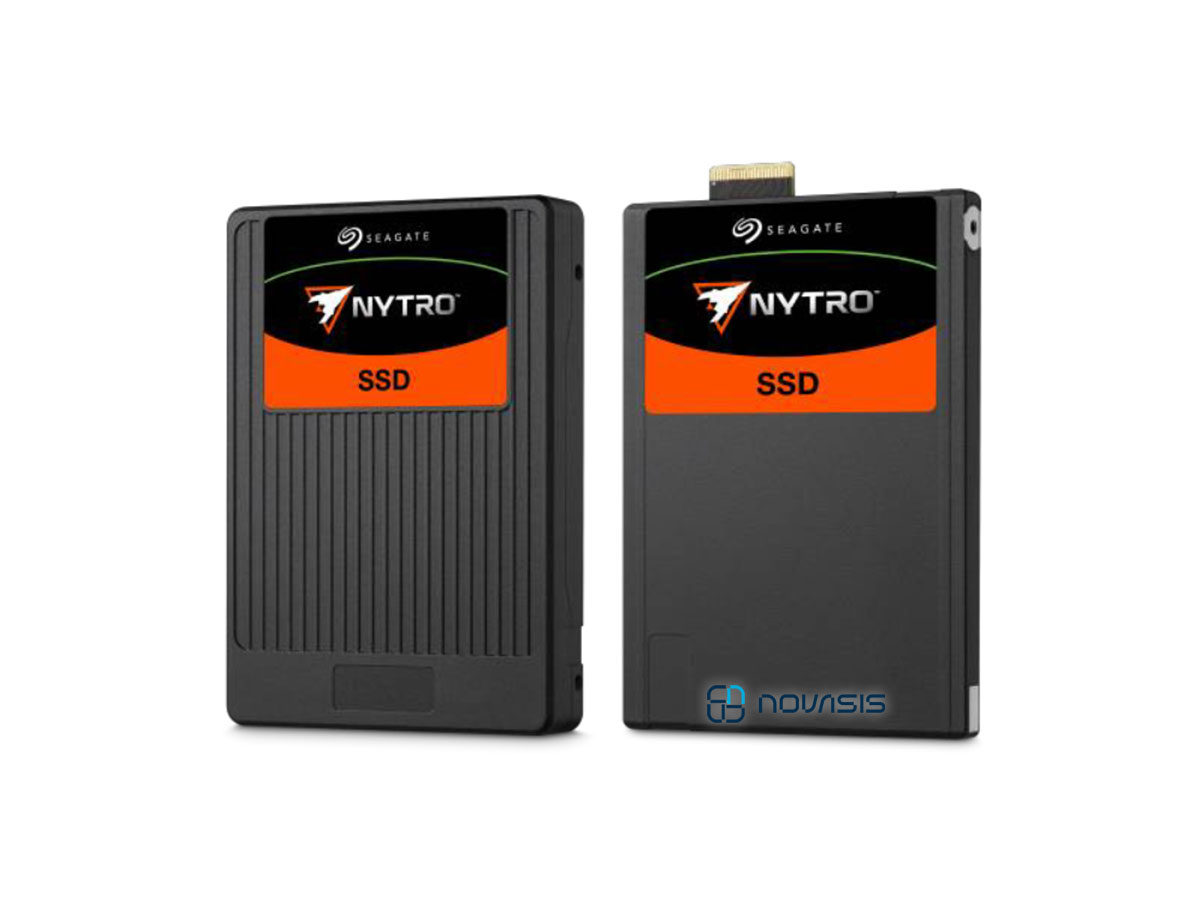

Seagate Nytro 5060 NVMe SSD

Nytro 5060; High-capacity enterprise SSD for scalable performance

As enterprise workloads continue to demand faster storage and higher scalability, organizations need SSD solutions capable of delivering consistent performance under heavy workloads. The Nytro 5060 Series addresses these requirements with PCIe Gen5 connectivity, ultra-low latency, and support for both read-intensive and mixed-use environments.

Available in multiple form factors and endurance profiles, the series enables businesses to optimize storage infrastructure for everything from transactional databases and software-defined storage to AI and machine learning platforms. With enterprise-class reliability, security, and serviceability, NYTRO 5060 NVME SSD provides a future-ready foundation for modern IT environments.

Key features of Nytro 5060 enterprise SSD

• PCIe Gen5 x4 interface with NVMe 2.0 support
• Up to 14.9GB/s sequential read throughput
• Up to 3.3 million random read IOPS
• Capacities up to 30.72TB
• Available in both 2.5-inch and E3.S form factors
• Single-port and dual-port configurations
• Read-intensive (1 DWPD) and mixed-use (3 DWPD) endurance options
• Self-Encrypting Drive (SED) and FIPS security models available
• Hot-swappable design for simplified maintenance
• OCP NVMe SSD 2.0 support for cloud-scale deployments

Performance and Reliability

The Nytro 5060 Series is designed for demanding enterprise applications that require high throughput and predictable latency. With sequential read speeds reaching up to 14.9GB/s and random read performance up to 3.3 million IOPS, these SSDs help eliminate storage bottlenecks and improve application responsiveness.

Enterprise-grade endurance ratings, up to 2.5 million hours MTBF, power-loss protection mechanisms, and advanced error management technologies ensure reliable operation in business-critical environments.

Capacity Options

The Nytro 5060 family is available in a wide range of capacities to support both performance-focused and high-density storage deployments.

Read-Intensive Models (Nytro 5360)

• Up to 30.72TB (2.5-inch)
• Up to 15.36TB (E3.S)

Mixed-Use Models (Nytro 5560)

• Up to 25.6TB (2.5-inch)
• Up to 12.8TB (E3.S)

Available capacities allow organizations to optimize storage density while maintaining high performance and operational efficiency.

Common Use Cases for Nytro 5060 NVMe SSD

• Server Virtualization
• OLTP Databases
• Software-Defined Storage
• All-Flash Arrays
• Caching and Tiering
• AI and Machine Learning

Why Choose Seagate Nytro 5060 SSD?

The Seagate Nytro 5060 Series combines next-generation PCIe Gen5 performance, enterprise reliability, flexible deployment options, and advanced security capabilities in a single storage platform.

Whether deploying AI infrastructure, cloud services, virtualization platforms, or mission-critical databases, organizations can benefit from predictable performance, high endurance, and scalable storage capacity.

Technical Specifications

Specification	Details
Interface	PCIe Gen5 x4, NVMe 2.0
Form Factors	2.5-inch U.2, E3.S
NAND Technology	3D eTLC NAND
Maximum Capacity	Up to 30.72TB
Sequential Read	Up to 14.9GB/s
Sequential Write	Up to 8.6GB/s
Random Read	Up to 3.3M IOPS
Random Write	Up to 900K IOPS
Endurance	1 DWPD / 3 DWPD
MTBF	2.5 Million Hours
Security Options	ISE, SED, FIPS 140-3

❓Frequently Asked Questions

What is the difference between Nytro 5360 and Nytro 5560 SSDs?

The Nytro 5360 is optimized for read-intensive workloads with a 1 DWPD endurance rating, while the Nytro 5560 is designed for mixed-use environments and offers up to 3 DWPD endurance.

Does the Nytro 5060 support PCIe Gen5?

Yes. The entire Nytro 5060 Series uses PCIe Gen5 x4 connectivity and supports the NVMe 2.0 specification.

What is the maximum capacity available?

The series supports capacities up to 30.72TB in selected 2.5-inch models.

Are encryption and security features available?

Yes. Selected models support Self-Encrypting Drive (SED), Instant Secure Erase (ISE), and FIPS 140-3 security options.

Which workloads are best suited for the Nytro 5060 Series?

The drives are ideal for virtualization, OLTP databases, software-defined storage, all-flash arrays, AI infrastructure, machine learning, and cloud data center deployments.
